Using Selections

Use Selections to isolate an area of a photo in order to apply edits or filters to only that area, rather than the whole photo. There are four different selection tools and each selects an area of a photo in a unique way. The controls available change depending on which tool you select.

To Use a Selection Tool:

1. In Edit mode, at the top of the panel, select the button for one of the following selection tools: Rectangular selection tool, Elliptical selection tool, Lasso selection tool, Magic wand selection tool. See below for more detailed steps for using these tools.

You can use Selections with the following Edit tools:

• Add: Vignette, Special Effects, Tilt-Shift, Drawing tools
• Exposure/Lighting: Exposure, Levels, Auto Levels, Tone Curves, Light EQ™
• Color: White Balance, Color Balance
• Detail: Sharpen, Blur, Noise, Clarity

The Selection Tools

• Freehand Lasso: Click the left mouse button and drag the cursor to draw around the area that you wish to select. As you draw, a line appears showing where you have drawn. When you release the mouse, the end of the line joins to the start automatically to complete the selection. The whole selection animates and looks like marching ants.
• Magic Wand: Click on any area of the image and all the pixels the same color are included in the selection. You can choose whether to select only the same color pixels that are actually touching the one you clicked, or all the pixels in the photo that are similar. You can increase the threshold to include more pixels in the selection. The lower the threshold, the more similar a pixel has to be to the one clicked in order to be included. The greater the threshold, the more different a pixel can be and still be in the selection.
• Rectangular or Elliptical: Click and drag either a rectangle or an ellipse that begins where you first click and ends when you release the mouse.

Using the Selection Tools

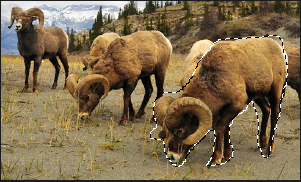

To Use the Lasso:

1. Select the Lasso button.
2. On the image, click and hold down the left mouse button as you draw around the area you want to select.
3. Release the mouse button to complete the selection.



4. To clear the selection, click anywhere on the image (for the Lasso , Rectangular, or Elliptical selection).

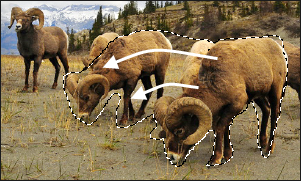

5. To add to an existing selection, hold down Shift, or press the Add to selection button in the Context bar, and draw a shape that includes any part of the original selection line.

When you release the mouse, the original selection expands to include the outer edge of your addition.

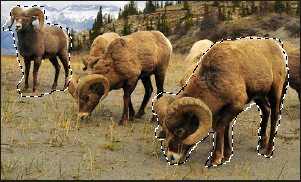

6. To add multiple areas into your selection, hold down Shift, or press the Add to selection button in the Context bar and draw around any part of the image.

As long as you do not touch the line of any other selection, you can add several separate areas to a selection.



7. To subtract from a selection, hold down Ctrl, or press the Subtract from selection button in the Context bar, and draw a shape that includes part of the original selection, or encircles it completely.

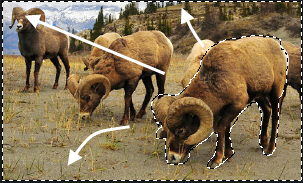

8. If you wish to apply edits or effects to the outside areas of the image, you need to click Select | Inverse to reverse the selected area.

Now the selection includes all the outside areas of the image with the central area outside the selection.

You can preview the selection mask by holding down the Preview button:

You can select an editing tool or a special effect to apply to the selection.

To Use the Magic Wand:

1. Select the Magic Wand button.
2. Click any color in the image.
3. Do any of the following:
   • Slide the Threshold slider to adjust the number of pixels to be included or excluded. The Threshold slider sets how similar a pixel needs to be to the one you clicked in order to be included in the selection.
   • Click the Connected checkbox if you want to include only pixels that are touching the one you clicked.
   • Hold down Shift and click around the selection to include more pixels.
   • Hold down Ctrl and click around the selection to remove pixels from the selection.
4. From the Wand type drop-down list, select one of the following:
   • Brightness: Selects pixels similar in brightness to the area of the image you clicked.
   • Color: Selects pixels similar in hue and brightness to the area of the image you clicked.

   Color is generally your best option.

   • RGB: Selects pixels with red, green, and blue combination similar to the area of the image you clicked.

You can preview the selection mask by holding down the Preview button:

You can select an editing tool or a special effect to apply to the selection.

To Use the Rectangular or Elliptical Selection Tool:

1. Select either the Rectangular or Elliptical button.
2. Click and drag to draw the selection on the image.
3. Do any of the following:
   • To add to an existing selection, hold down Shift, or use the Add to selection button , and drag another selection that includes any part of the original selection line. Release the mouse and the selection now includes the additional area.
   • To add multiple areas to your selection, hold down Shift and drag as many as you want.
   • To subtract from an existing selection, hold down Ctrl, or use the Subtract from selection button , and drag another selection that intersects with the one you want to reduce. Release the mouse and any part that was inside the new selection is removed.

You can preview the selection mask by holding down the Preview button:

You can select an editing tool or a special effect to apply to the selection.

Combining the Tools

You can use the Selection tools separately or in combination. For example, you can use the Magic Wand to select most of a particular color, then switch to the Freehand Lasso to add to, or subtract from, the selection. Or you could use the Rectangular selection to select a large general area, then refine it using the Freehand Lasso.

To Combine Selection Tools:

1. Choose a tool and make a selection.
2. Switch to another tool.
3. Press the Add to selection button.
4. Make another selection.

Saving Selections as Presets:

You can save your settings as a preset for future use. After you have made a selection, click Select | Save Selection...

To use a previously saved selection, click Select | Load Selection...

To delete a saved selection, click Select | Manage Selections...
