Using the Luminance Range Tool

The Luminance Range tool allows you to focus adjustments on specific brightness levels within a photo, making it easy to target and enhance particular areas of an image. Adjust the settings for the mask such as the Exposure, Saturation, Vibrance, Temperature, Tint, Fill Light, Contrast, Clarity, and Color Strength, as well as Color EQ, Tone Curves, and Sharpness in one or a series of luminance masks over the photo. For example, instead of adding Fill Light to an entire photo, add the fill light to certain areas, such as back-lit subjects.

Luminance Range Tool

The Luminance Range button displays in the Masking Group of the Tune and Detail tabs.

To Use the Luminance Range Masking Tool:

  1. In Develop mode, in the Tune or Detail tab, click Masking, then Luminance Range in the Masking Group to open the control panel and enter Luminance Range mode.
  2. Specify the Luminance Range settings in the panel as described in the table below.
  3. Adjust the Luminance Range Controls to set the mask based on the luminance values selected.
  4. Adjust the sliders to get the effect you want.

    5. To apply another mask, (up to 24 are available), click the + on the bottom left of the panel and select a masking option. A new icon (related to the type of mask selected) will appear in the Masks section. Your currently selected mask will be outlined in blue. You can reselect any of the masks at any given time by clicking its respective icon.

  5. Press Save or Done.

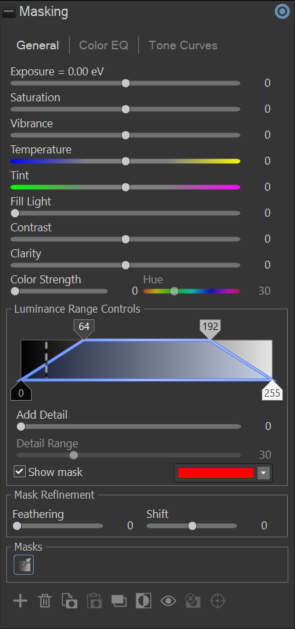

Luminance Range Controls

Luminance Range

Adjust shadows, midtones, and highlights with the 4 indicating tabs.

Add Detail

Increases the sharpness and clarity of textures and edges within the selected luminance range.

Detail Range

Specifies the range of brightness levels where the detail enhancement is applied.

Show mask

When this option is checked, your gradient mask will be displayed in the color shown.

Mask Refinement

Feathering

Adjust the slider to control the softness of the transition between the brush strokes and the image. Use Ctrl + mouse wheel to adjust the amount of feathering or adjust the Feathering slider.

Shift

Adjust the edges of a mask by expanding or contracting them. Shifting the mask outward increases its coverage, making the masked area larger, while shifting inward reduces it's coverage, tightening the selection.

Using the Luminance Range Masking Tool on the Detail Tab

Sharpness

Move the Sharpness slider to the right to sharpen the area affected by the mask, or move the slider to the left to blur the area affected by the mask.

Luminance Noise Reduction

Reduces graininess or "noise" in the image by smoothing our variations in brightness (luminance) while preserving detail and texture.

Color Noise Reduction

Reduces unwanted color artifacts or "color noise" in an image by smoothing out random variations in color while maintaining overall image detail.
